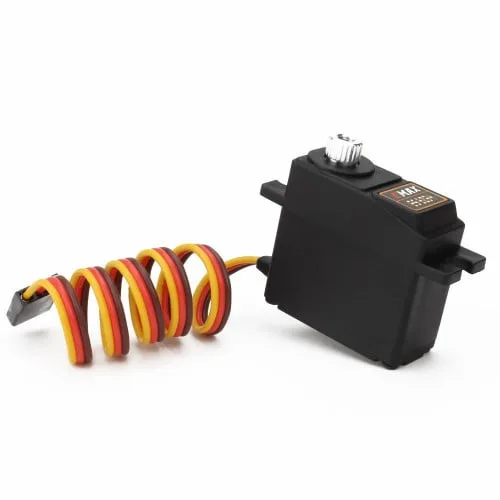

Emax ES3054 30 N-cm 23T Metal Gear Digital Servo ES3154 upgrade is lightweight servo motor. This motor has 0.10 sec of response time per 60°.
Dimensions :
Features:
Assuring high accuracy and coherence.
Dual-bearing design maintains low backlash and smoothness of the servo for a long time.
2.4 Kgf.cm, 0.12 Sec/60° at no load under 4.8V and2.8 Kgf.cm, 0.10 Sec/60° at no load under 6.0V.
Package Includes:
1 x Emax ES3054 30 N-cm 23T Metal Gear Digital Servo ES3154 upgrade.
1 x Set of accessories.
Item Type:
Emax Servo Motor
Torque Rating (kg-cm):
3 to 3.5
Model No.:
ES3054
Input Supply Voltage (V)
4.8 ~ 6
Operating Speed @4.8V
0.15 sec/60°, no load
Stall Torque @4.8V (N-cm)
30
Stall Torque @6V (N-cm)
35
Operating Speed @6V
0.13 sec/60°, no load
Servo Plug Type
FUT, JR
Cable Length (cm):
25
Length (mm):
38.3
Width (mm):
13
Height (mm):
31.3
Weight (g):
22
Shipping Weight
0.025 kg
Shipping Dimensions
3.9 × 2.3 × 4 cm
3 Months Warranty
This item is covered with a standard supplier warranty of 3 months from the time of delivery against manufacturing defects only. This is a quality product & only manufacturing defects are covered under this warranty. Replacement will be done against manufacturing defects.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Country Of Origin: China
